Quick Details

  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: OEM/ODM
  • Model Number: SV1200/SV2400
  • Output Power: 720W/1440
  • Output Type: Single
  • Size: 288*272*90mm
  • Weight: 2.8kg/3kg
  • Input Voltage: AC220V/230V/240V
  • Output Voltage: AC220V/230V/240V
  • Type: DC/AC Inverters
  • Output Frequency: 50Hz
  • Output Current: 30A/50A
  • Capacity: 1200VA/720W 2400VA/1440W
  • Sensitivity selector: UPS mode/inverter mode
  • Wave form: Simulated Sinewave
  • Display: LED / LCD selection
  • Warranty: 12 Months since recieving date
  • Protection: Overload, discharge,overcharge,over tempereture and short circuit
  • Noise Level: Less than 40dB
  • Color: black
  • Gross weight: 3.15KG/3.35KG
  • Power saving mode: When solar is charging,AC charger stop automatically to save AC power

Packaging & Delivery

Packaging Details a.One pcs solar off grid Inverter togerter with one plug and two pcs battery line put into one poly bag then put into color box
b. 9pcs color box put into one master box.
Delivery Time 15-25days for production

China Wholesale Off Grid Solar Inverter 1200va Inverter Solar Power Irrigation System

Product Description

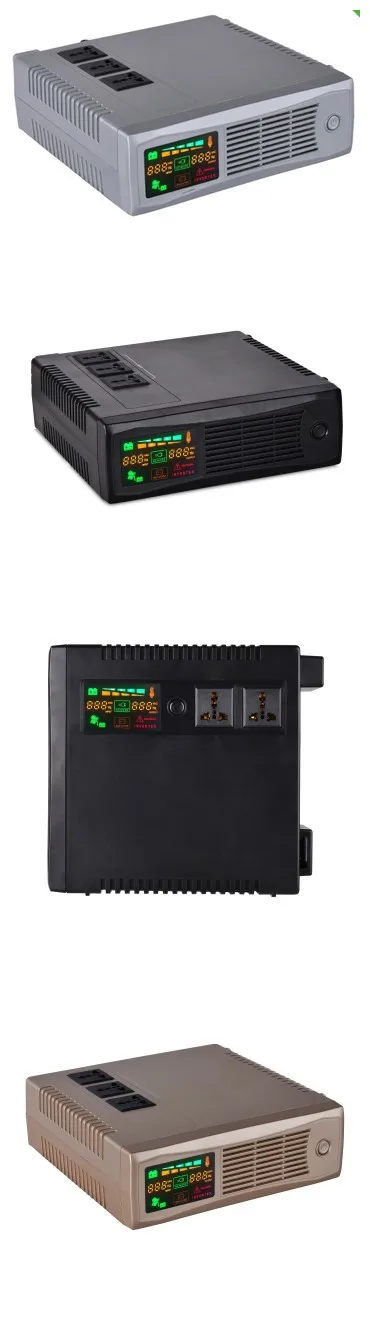

Products Overview:











Technical Specification:

Model

SV1200

SV2400

Capacity

1200VA/720W

2400VA/1440W

Input

Voltage

220/230/240 VAC

Voltage Range

162-290 VAC /90-290 VAC

Frequency Range

50Hz

Output

AC Voltage Regulation(Bat Mode)

±10%

Frequency Range(Bat Mode)

50Hz ± 1Hz

Transfer Time

Typical 20 ms

Waveform(Bat Mode)

Simulated Sinwave

Peak Efficiency(AC Mode)

>95% @ Full R load

Battery

Battery Voltage

12VDC

24VDC

AC Charger

Floating Charging Voltage

13.7VDC

27.4VDC

Max Charging Current

10A/20A Selectable

Solar Charger

Solar Charger Input

15-40VDC

30-60VDC

Solar Charger Output

13.7VDC

27.4VDC

Solar Charger Current

30A/50A Selectable

Power Saving Mode

While Solar is charging, AC charger stop automatically to save AC power

Protection

Full Protection

Overload, discharge, overcharge, over temprature and short circuit protection

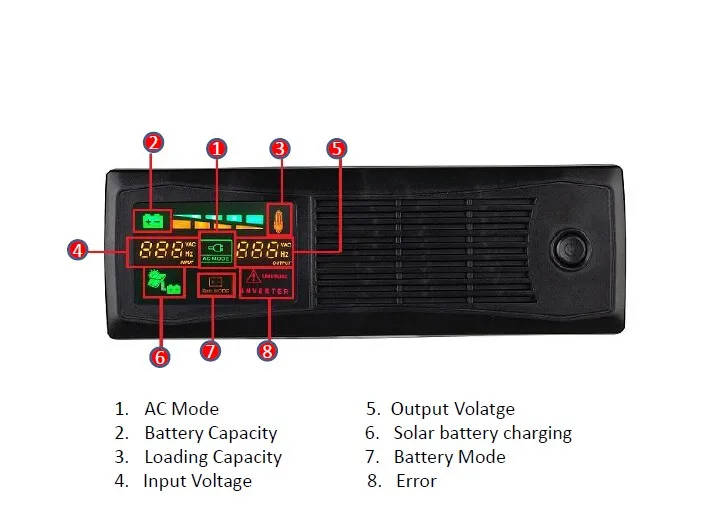

Indicators

Line Mode

Color LCD

Battery Mode

Indicating Line Mode, Battery Mode, Input Voltage, Output Voltage, AC Charging Mode, Solar Charging Mode, Load Level, Battery Level, and fault etc.

Physical

Dimension, L*W*H(mm)

288*272*90

Net Weight(Kgs)

2.8

3

Environment

Humidity

0-90% Relative Humidity (Non-condensing)

Operating Temperature

0 to 50

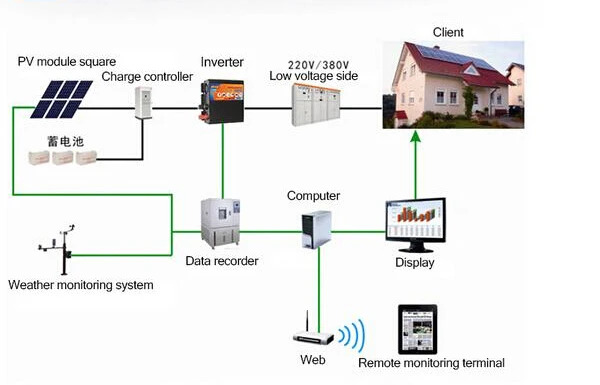

Application







Related Products



Company Information







Certifications



Packaging & Shipping
MODEL SV1200/2400 (MV1200/2400)
Unit Size 288 x 272 x 90 mm
Unit weight 2.78kgs
Gift box size 312 x 128 x 332mm
QTY/CTN 9pcs / ctn
Carton Size 1185 x 325 x 350mm
GW/CTN 31.81kgs
NW/CTN 30.33kgs
Warranty 12 months









FAQ

1.Why choose Fenice Power?

-Strong R&D team with 20 years experience on UPS and Inverter;

-Over 20 years professional power system producing experience;

-10 years experience on exporting market.



2. Are you ODM/OEM factory?

Yes,our factory located in Shenzhen,welcome to anytime.



3. What capacity do you have for line interactive ups and inverter?

We have 450VA/650VA/850VA/1000VA/1200VA/1500VA/2000VA for line interactive ups,1200VA/2400VA for inverter. Anyway,you can customize the capacity.



4. Can you ship me a sample?

Yes,sample orders will be delivered in 7 working days since full payment received.



5. Is the product safe and environmental?

Yes,it has overload,overcharge,discharge protection. We got RoHS certification.



6. Do your products have warranty?

Of course. One year warranty after you received the line interactive ups and inverter.



7. Whats the difference of line interactive UPS and Inverter?

Inverter has large capacity,cant supply power immediately. Line interactive UPS has small capacity,can supply power immediately.
