Quick Details

  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: OEM
  • Model Number: MV2400
  • Output Power: 1 - 200KW
  • Output Type: Single
  • Size: 288*272*90
  • Weight: 3KG
  • Input Voltage: 220/230/240 VAC
  • Output Voltage: 220V/230V/240V+/_10%
  • Type: DC/AC Inverters
  • Output Frequency: 50Hz+/_1Hz
  • Output Current: 30/50A selectable
  • Battery Voltage: 24VDC
  • Line Mode: Color LED
  • Capacity: 2400VA/1440W
  • Output waveform: Simulated Sine Wave
  • Transfer time: Typical 20ms
  • Certificate: RoHS/CE
  • Warranty: 12 Months
  • Max Charging Current: 10A/20A Selectable
  • Application: Overload,discharge,overcharge,over temperature and short circuit
  • Product name: homage power Inverter

Packaging & Delivery

Packaging Details Model: MV2400
Unit Size : 288 x 272 x 90 mm
Unit weight: 2.79kgs
Gift box size : 312 x 128 x 332mm
9pcs / ctn
Carton Size: 1185 x 325 x 350mm
GW/CTN: 31.81kgs
NW/CTN: 30.33kgs
Delivery Time 21 days

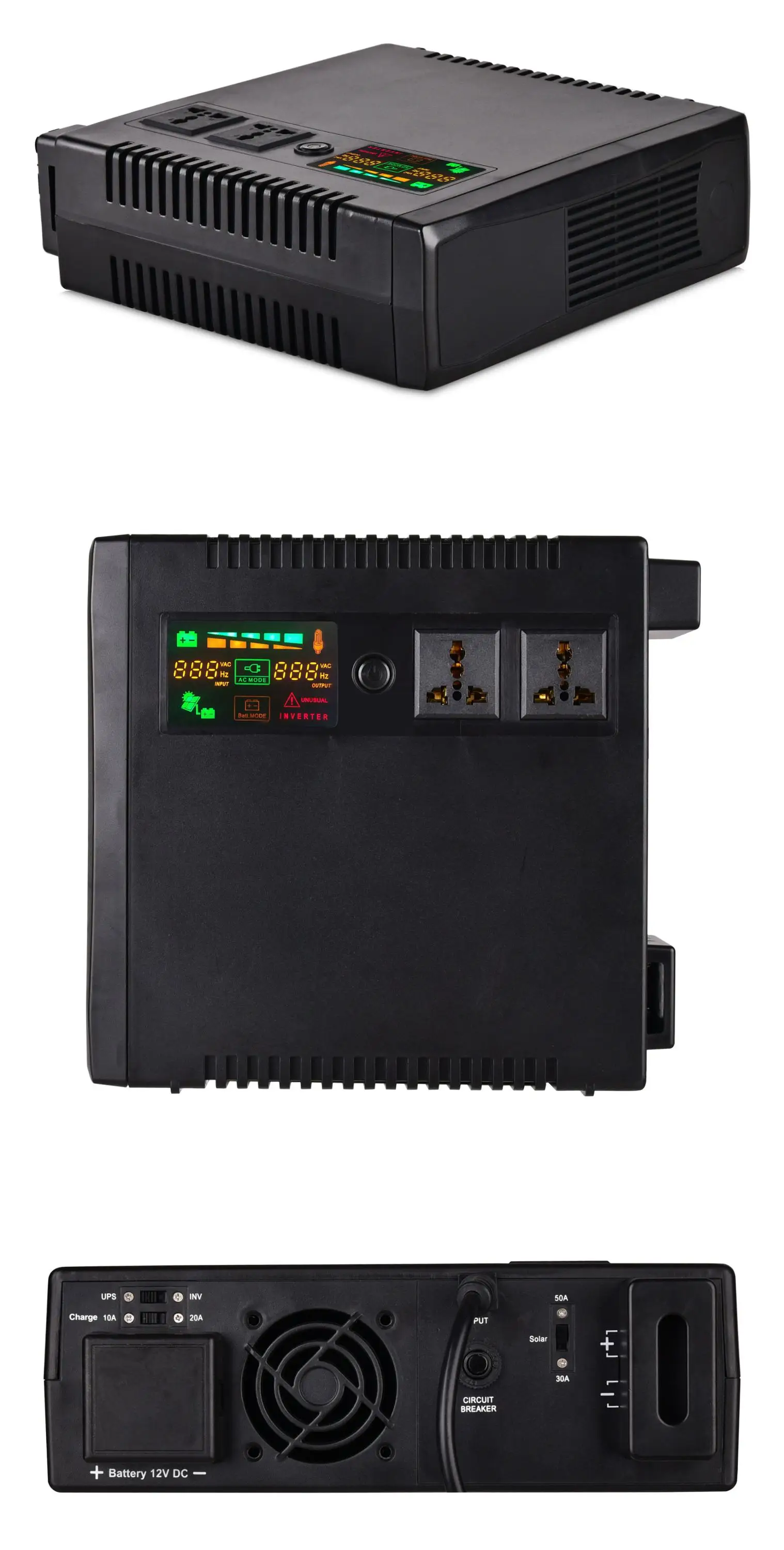

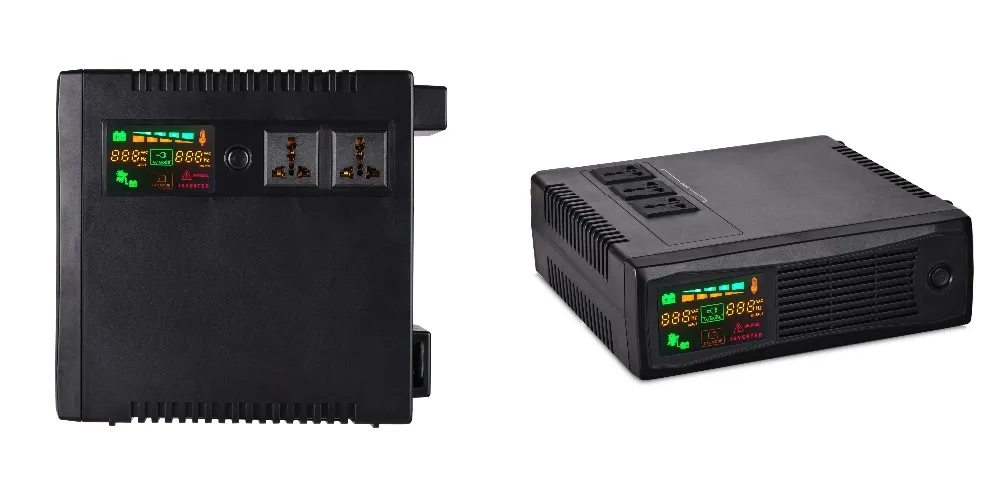

1440W homage power Inverter for DVD / TV / Lights / Fans



Product Description

Main Features

♦ Simulated sine wave inverter;

Sensitivity selector(UPS mode & Inverter mode);

10A/20A selectable AC charging current;

Off mode charging function;

Auto restart while AC is recovering;

Cold start function;

Multiple install options: horizontal,vertical,and wall mount;

Surge,Over load,Short circuit,Over temperature, Over charging Protection;

Generators & Computer-related devices compatible;

Home use for DVD,TV, Lights and fans;



Specifications

MODELMV2400
Capacity2400VA/1440W
INPUT
Voltage220/230/240 VAC
Voltage Range162-290 VAC or 90-290 VAC
Frequency Range50Hz
OUTPUT
AC Voltage Regulation(Bat Mode)±10%
Frequency Range(Bat Mode)50Hz ± 1Hz
Transfer TimeTypical 20ms
Waveform(BAT Mode)Simulated sine wave
Peak Efiiciency(AC Mode)>95%@ Full R load
BATTERY
Battery Voltage24VDC
AC CHARGER
Floating Charging Voltage27.4VDC
Max Charging Current10A/20A Selectable
PROTECTION
Full protectionOverload,discharge,overharge,over temperature and short circuit protection
INDICATIONS
Line ModeColor LED
Battery ModeIndicating Line mode,Battery mode,AC Charging mode,Solar Charging mode,Load level,Battery level and fault etc.
ENVIRONMENT
Humidity0-90% Relative Humidity (Non-Condensing)
Operating Temperaure0°C to 50°C
PHYSICAL
Dimension288*272*90
Net Weight3KG





Applications

Products recommend
Certifications
Company Information
Packaging & Shipping



MODEL MV2400
Unit Size 288 x 272 x 90 mm
Unit weight 2.79kgs
Gift box size 312 x 128 x 332mm
QTY/CTN 9pcs / ctn
Carton Size 1185 x 325 x 350mm
GW/CTN 31.81kgs
NW/CTN 30.33kgs
Warranty12 months



FAQ

1.Why choose Fenice Power?

-Strong R&D team with 20 years experience on UPS and Inverter;

-Over 20 years professional power system producing experience;

-10 years experience on exporting market.



2. Are you ODM/OEM factory?

Yes,our factory located in Shenzhen,welcome to anytime.



3. What capacity do you have for line interactive ups and inverter?

We have 450VA/650VA/850VA/1000VA/1200VA/1500VA/2000VA for line interactive ups,1200VA/2400VA for inverter. Anyway,you can customize the capacity.



4. Can you ship me a sample?

Yes,sample orders will be delivered in 7 working days since full payment received.



5. Is the product safe and environmental?

Yes,it has overload,overcharge,discharge protection. We got RoHS certification.



6. Do your products have warranty?

Of course. One year warranty after you received the line interactive ups and inverter.



7. Whats the difference of line interactive UPS and Inverter?

Inverter has large capacity,cant supply power immediately. Line interactive UPS has small capacity,can supply power immediately.
