Quick Details

  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: OEM
  • Model Number: SV2400
  • Output Power: 1440W
  • Output Type: Single
  • Size: 280 x 262 x 87mm, 280 x 262 x 87mm
  • Weight: 3kg
  • Input Voltage: 24V
  • Output Voltage: AC110V/220V/230V/240V
  • Type: DC/AC Inverters
  • Output Frequency: 50Hz/60Hz
  • Output Current: Load
  • Product name: Solar Inverter
  • Sensitivity selector: UPS mode/inverter mode
  • Wave form: Simulated Sinewave
  • Display: LCD
  • Warranty: 12 Months
  • Protection: Overload, discharge,overcharge,over tempereture and short circuit
  • Noise Level: Less than 40dB
  • Color: black
  • Net weight: 3KG

Packaging & Delivery

Packaging Details Model: SV2400
Unit Size : 288 x 272 x 90 mm
Unit weight: 3 kgs
Gift box size : 312 x 128 x 332mm
9pcs / ctn
Carton Size: 1185 x 325 x 350mm
GW/CTN: 33.7kgs
NW/CTN: 32.22kgs
1800pcs / 20ft container
3700pcs / 40ft container
Delivery Time Shipped in 25 days after payment

Hot OEM tablet hybrid inverter for home with 50amp solar charger





Main Feature

•Simulated sine wave inverter

•Sensitivity selector (UPS mode & inverter mode)

•10A / 20A selectale AC charging current

•Off mode charging function

•Auto restart while AC is recovering

•Cold start function

•Multiple install options: horizontal, vertical, and wall mount

•Surge, Over load, Short circuit, Over temperture, Over charging Protection.

•Generators & Computer-related devices compatible



ModelSV2400/2400va 1440w
Capacity
INPUT
Voltage220/230/240VAC
Voltage Range162-290VAC or 90-290VAC Selectable
Frequency Range 50Hz
OUTPUT
Voltage Ragulation (Bat Mode) ±10%
Frequency Range (Bat Mode)50Hz ± 1Hz
Transfer timeTypical 20ms
Waveform (Bat Mode)Simulated Sinewave
Peak Efficiency(AC Mode)>95% @ FULL R load
Battery
Battery voltage24VDC
AC Charger
Floating Charge Voltage27.4VDC
Max Charging Current10A/20A Selectable
Solar Charger
Solar Charger Input18-80VDC
Solar Charger Output27.4VDC
Solar Charger Current30A/50A Selectable
Power Saving ModeWhile solar is charging,AC charger stopps automatically to save AC power
Protection
Full protectionOverload,discharge,overcharge,over temperature and shot circut protection
IndicationsColor LED
DisplayIndicating line model,battery mode,input voltage,output voltage,AC charging mode,solar charging mode,load level,battery level,and fault etc.
Physical
Dimension,D*W*H(mm)288*272*90
Net Weight (kgs)3
Environment
Humidity0-90% Relative Humidity (Non-condending)
Operating Temperature0 ℃ to 50 ℃

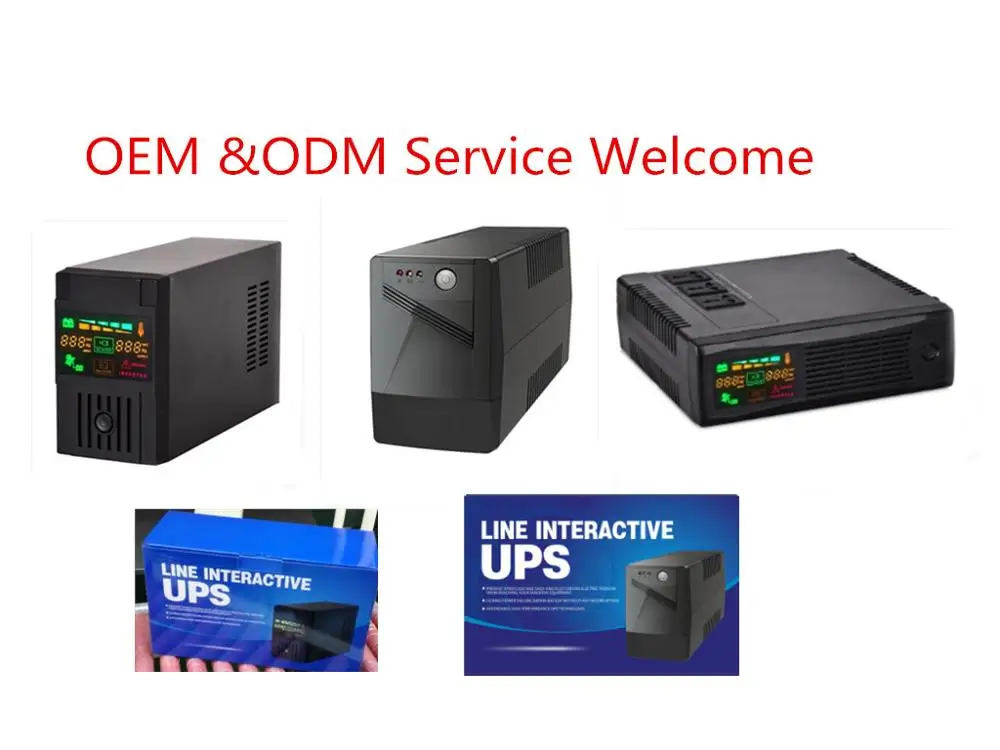

 Product Photo

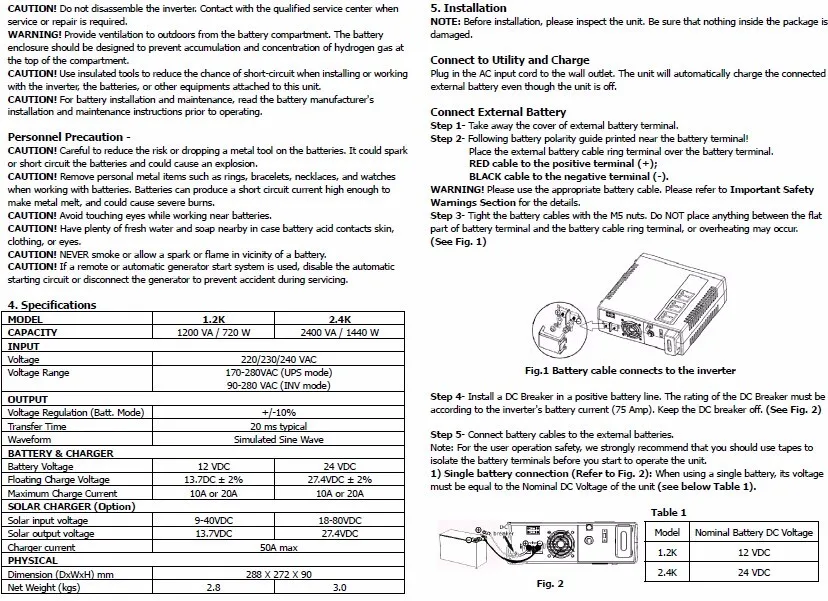

User Manual







Application Area









Products Recommended



Company Presentation

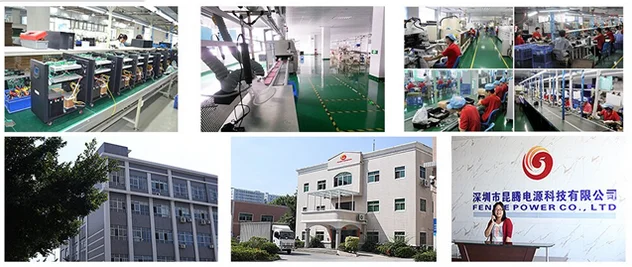

Our workshop

Our Exbition



Package Infomation







Contact Infomation
