Quick Details

  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: OEM
  • Model Number: 650va
  • Phase: Single Phase
  • Protection: Overload,overvoltage,short circuit
  • Weight: 3.8kg-5kg
  • Output Voltage: 100/110/120/127/220/230VAC+/-10%
  • Type: Line Interactive
  • Application: Security / Monitoring / Alarm
  • Product name: line interactive UPS
  • Wave Form: Simulated Sine Wave
  • Battery Type: 12V/9AH x1
  • Display: LED
  • Transfer Time: 2-6ms
  • Warranty: 12 Months
  • Frequency: 50HZ/60HZ
  • Dimension: 279 x 101 x 142 mm
  • Net Weight: 4.2KG
  • uninterruptible power supplies UPS: ups power supply

Packaging & Delivery

Packaging Details Model: 650va UPS
Unit size : 297 x 101 x 142mm
color box size :340 x 140 x 220mm
marster carton size :585 x 352 x 238mm
4pcs per carton
with user manual .
NW/CTN : 20.3kgs
GW/CTN: 21.15kgs
Pcs per20'/40'/40'HC:2000PCS/4400PCS/4900PCS
Delivery Time 15 working days after the deposit

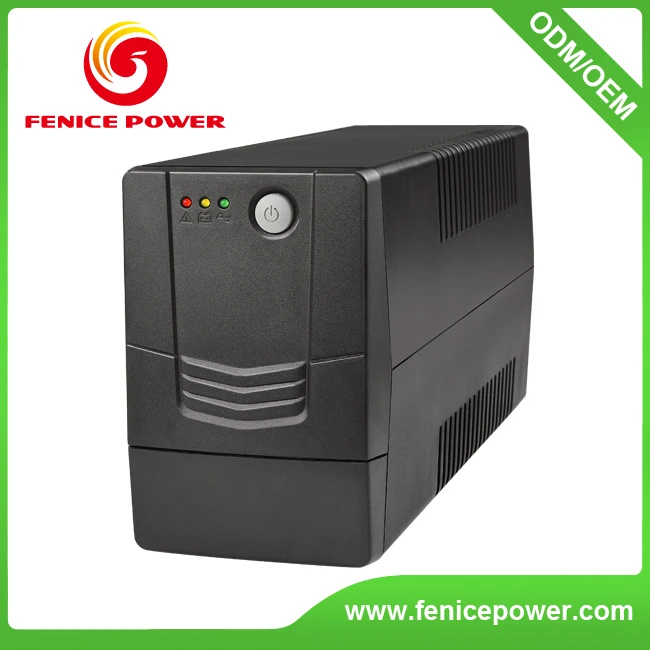

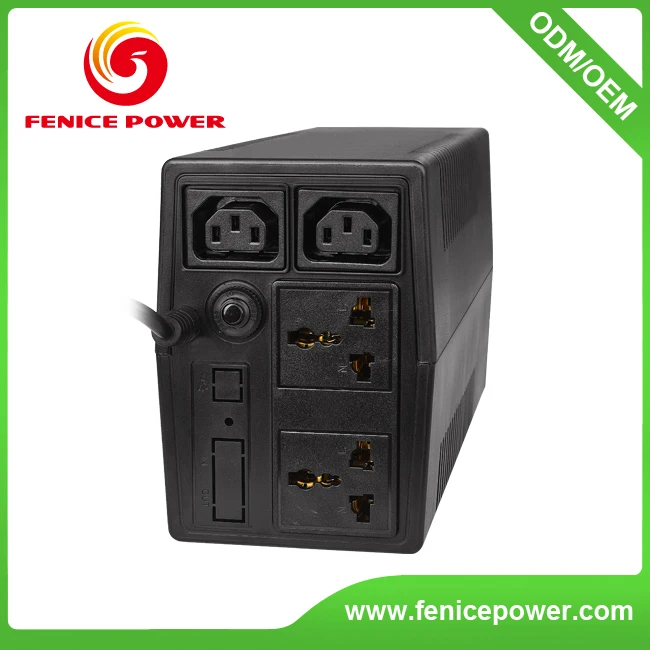

OEM 650va home ups online with UPS circuit board

Main Features

1.LED display with compact size

2.Built super smart charger,shorten charging time

3.Boost and buck AVR for voltage stabilization

4.Auto restart while AC is recovering

5.Long back up with external battery

6.Charging current selectable

7.Simulated sine wave

8.Cold start function

9.Power-on self test

10.Built-in self-diagnostic function

11.Intelligent battery management

12.Optional no-load shut down

13.Humanized alarm system

14.Compatible with generator set(optional)

15.Optional RS232/USB communication port and RJ11/RJ45 protection

16. Excellent microprocessor control optimizes reliability

Product Description



Voltage110/120 VAC or 220/230/240 VAC
Voltage Range81-145VAC or 162-290VAC
Frequency Range 60/50 Hz (Auto sensing)
OUTPUT Voltage110/120 VAC or 220/230/240 VAC
AC Voltage Ragulation (Bat Mode) ±10%
Frequency Range (Bat Mode)60Hz or 50Hz ± 1Hz
Transfer timeTypical 2-6ms
Waveform (Bat Mode)Simulated Sinewave
Battery Type&Number1*7AH battery
Charging ability4-6 hours recover to 90% capacity
Full protectionOverload,discharge,and overcharger protection
LCD DisplayAC/Battery Mode,Load/Battery Level,Input/Output Voltage,Overload,Fault,and low Battery
LED DisplayAC ModeGreen lghtingThe right green LED lighting&the 2nd to 5th green LEDs gradually lighting indicating load level
Battery ModeYellow flashingThe right green LED flashing&the 2nd to 5th green gradually lighting indicating battery capacity
FaultRed lighting
Battery modeSounding every 10 seconds
Low batterySounding every second
OverloadSounding every 0.5 seconds
Battery Replacement AlarmSounding every 2 seconds
FaultContinuously sounding
Net Weight (kgs)4.2
Humidity0-90% Relative Humidity 0-40 ℃ (Non-condending)
Noisy LevelLess than 40dB
Optional USB/RS232 PortSupports Windows 2000/2003/XP/Vista/2008,Windows 7/8 Linux Unix  and MAC



Packaging & Shipping

Unit Size : 370 x 138 x 166mm
Unit weight: 9.54kgs
Gift box size : 470 x 195 x 255mm
1pcs / ctn
Carton Size: 470 x 195 x 255mm
GW/CTN: 12.54kgs
NW/CTN: 11.04kgs
1100pcs / 20ft container
2300pcs / 41ft container
